tvm::constraint::abstract::Constraint Class Reference

#include <tvm/constraint/abstract/Constraint.h>

Inheritance diagram for tvm::constraint::abstract::Constraint:

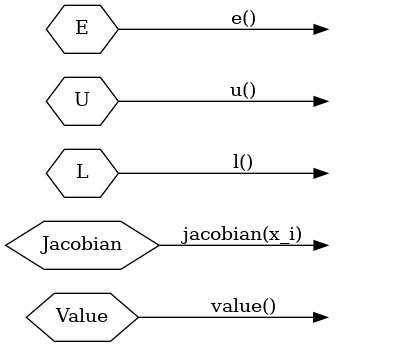

Collaboration diagram for tvm::constraint::abstract::Constraint:

Public Member Functions
virtual const Eigen::VectorXd &	l () const
virtual const Eigen::VectorXd &	u () const
virtual const Eigen::VectorXd &	e () const
Type	type () const
bool	isEquality () const
RHS	rhs () const
Public Member Functions inherited from tvm::internal::ObjWithId
	ObjWithId (const ObjWithId &)=delete
	ObjWithId (ObjWithId &&other)
ObjWithId &	operator= (const ObjWithId &)=delete
ObjWithId &	operator= (ObjWithId &&other)
int	id () const
Public Member Functions inherited from tvm::graph::abstract::OutputSelector< Constraint, tvm::internal::FirstOrderProvider >
	OutputSelector (Args &&... args)
void	lock ()
void	unlock ()
bool	isLocked () const

Protected Member Functions
	Constraint (Type ct, RHS cr, int m=0)
void	resizeCache () override
Eigen::VectorXd &	lRef ()
Eigen::VectorXd &	uRef ()
Eigen::VectorXd &	eRef ()
Protected Member Functions inherited from tvm::internal::ObjWithId
	ObjWithId ()
Protected Member Functions inherited from tvm::graph::abstract::OutputSelector< Constraint, tvm::internal::FirstOrderProvider >
void	disableOutput (EnumT e)
void	disableOutput (EnumT e, Args... args)
void	enableOutput (EnumT e)
void	enableOutput (EnumT e, Args... args)
bool	isOutputCustomEnabled (int e) const override

Protected Attributes
internal::RHSVectors	vectors_

Detailed Description

Base class for representing a constraint.

It manages the enabling/disabling of the outputs L, U and E (depending on its type and rhs convention).

FIXME: have the updateValue here and add an output check()

Constructor & Destructor Documentation

Constraint()

tvm::constraint::abstract::Constraint::Constraint ( Type  ct, RHS  cr, int  m = 0  )

protected

Constructor. Only available to derived classes.

Parameters

ct	The constraint type
cr	The rhs convention
The	(output) size of the constraint

Member Function Documentation

e()

const Eigen::VectorXd & tvm::constraint::abstract::Constraint::e ( ) const

inlinevirtual

Return the vector e

Warning

the call is valid only if l exists for the given constraint conventions, but the method does not throw if it is not the case.

eRef()

Eigen::VectorXd & tvm::constraint::abstract::Constraint::eRef ( )

inlineprotected

Direct (non-const) access to e for derived classes

isEquality()

bool tvm::constraint::abstract::Constraint::isEquality

(

)

const

Check whether this is an equality constraint.

l()

const Eigen::VectorXd & tvm::constraint::abstract::Constraint::l ( ) const

inlinevirtual

Return the vector l

Warning

the call is valid only if l exists for the given constraint conventions, but the method does not throw if it is not the case.

lRef()

Eigen::VectorXd & tvm::constraint::abstract::Constraint::lRef ( )

inlineprotected

Direct (non-const) access to l for derived classes

resizeCache()

void tvm::constraint::abstract::Constraint::resizeCache ( )

overrideprotected

Resize the cache (rhs vector(s), jacobian matrices,...) for the current size of the constraint.

rhs()

RHS tvm::constraint::abstract::Constraint::rhs

(

)

const

Return the convention for the right-hand side e, l, u or both l and u of the constraint.

type()

Type tvm::constraint::abstract::Constraint::type

(

)

const

Return the type of the constraint.

u()

const Eigen::VectorXd & tvm::constraint::abstract::Constraint::u ( ) const

inlinevirtual

Return the vector u

Warning

the call is valid only if l exists for the given constraint conventions, but the method does not throw if it is not the case.

uRef()

Eigen::VectorXd & tvm::constraint::abstract::Constraint::uRef ( )

inlineprotected

Direct (non-const) access to u for derived classes

Member Data Documentation

vectors_

internal::RHSVectors tvm::constraint::abstract::Constraint::vectors_

protected

Cache for l, u and e

---

The documentation for this class was generated from the following file:

• include/tvm/constraint/abstract/Constraint.h
